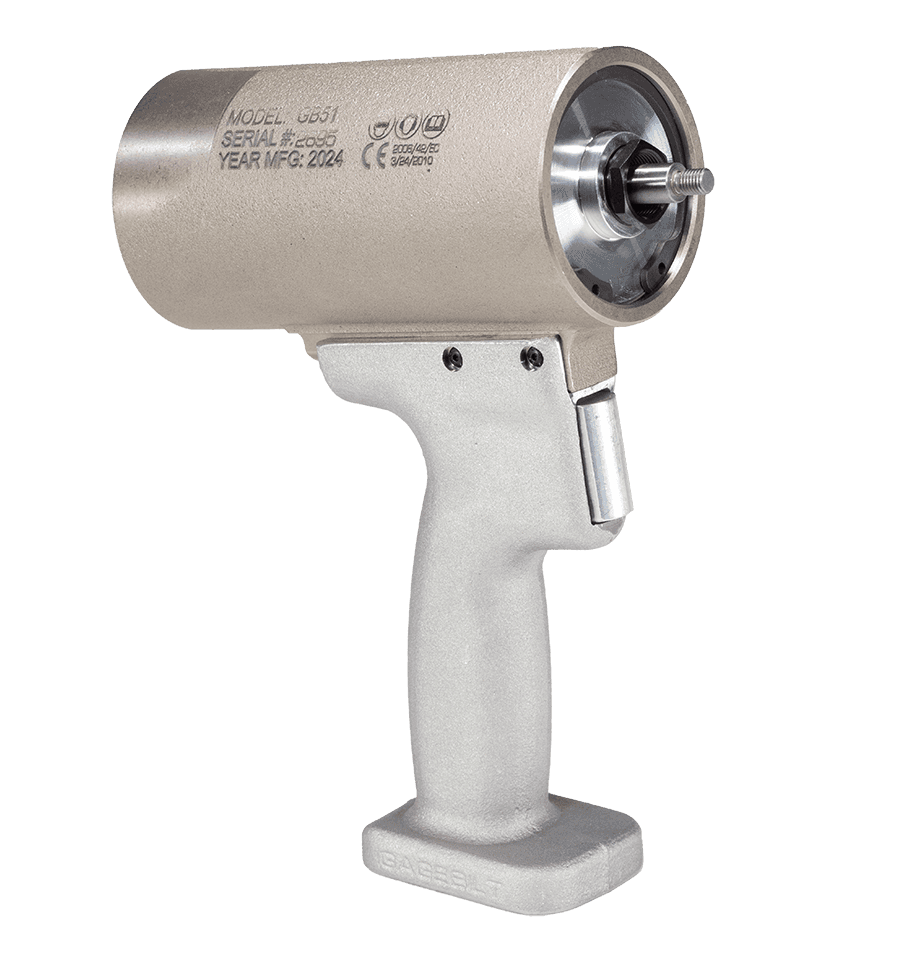

The GB51 pneumatic installation tool is designed specifically for the most efficient installation of blind rivets. It will install aluminum fasteners through 3/16" diameter, and through 1/8" diameter fasteners in any material. It weighs only 2.50 lbs. (1.13 kg) and can be operated with one hand.

The GB51 Installation tool is 8.36" (212.4 mm) high, has a .740” (18.8mm) stroke and generates a minimum of 1,000 lbs. (4.45 kN) of pull at 90 psi (6.2 bar). It operates on 90 psi - 100 psi. (6.2 bar - 6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing maximum efficiency. At 90 psi. (6.2 bar) of air pressure, the GB50 does not exceed 81.5 dB(A) and consumes .29 SCF/cycle (8.21 L/cycle)

APPLICATIONS

• Aerospace and Commercial blind rivets

• 'U' Type

• Max Type

• All materials thru 1/8"

• Aluminum thru 3/16"
