Gage Bilt, Split Rivet Systems

Pneumatic Rivet Guns

GB703SRV

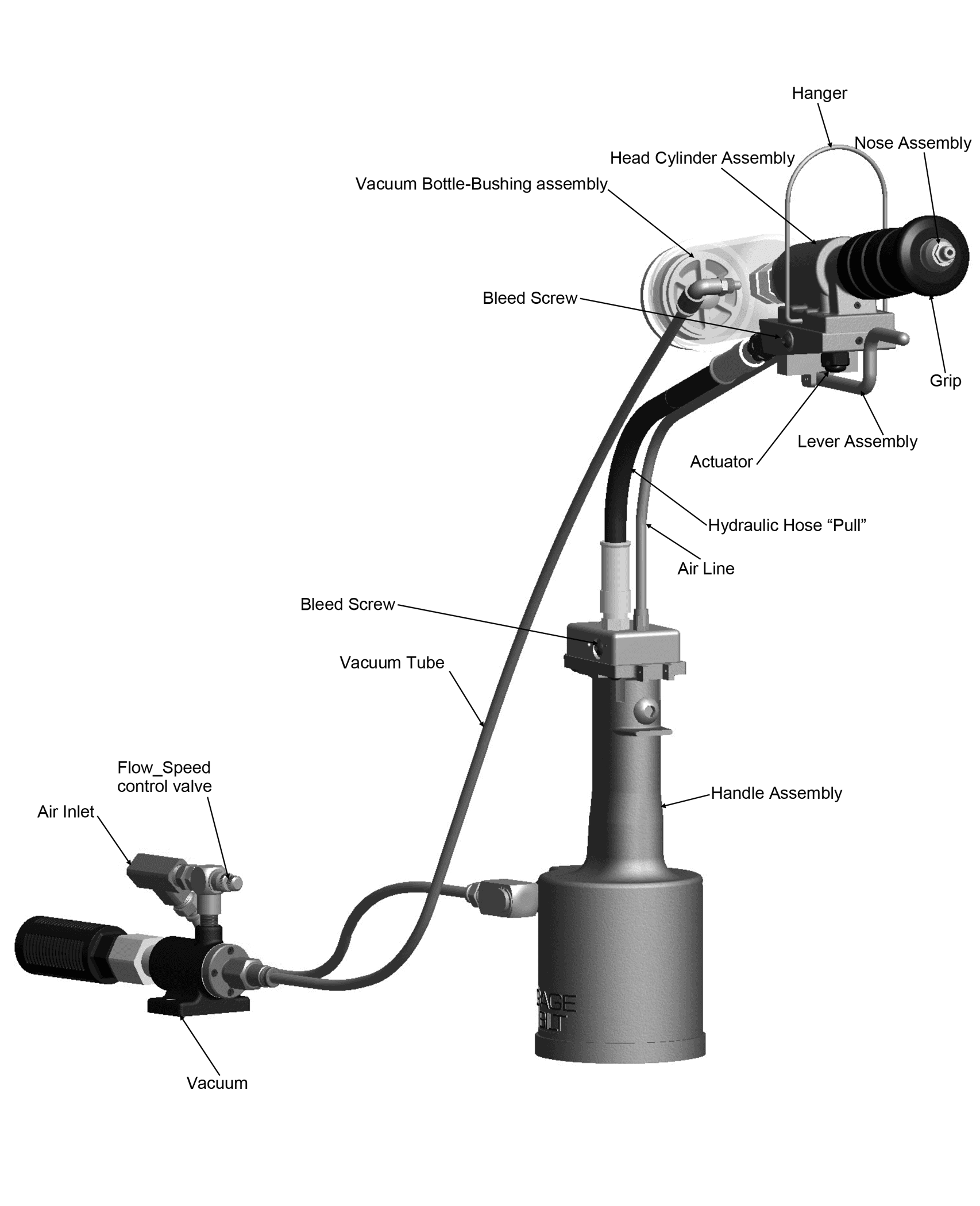

The GB703SRV is a pneumatic-hydraulic split handle installation tool designed specifically for the efficient installation of blind rivets. This tool’s unique "split" system provides the operator with a lightweight ergonomic tool. The head assembly when held in hand weighs 1.5 lbs. (.68 kg). The entire split handle installation tool weighs 11 lbs. (5 kg). It has a .780” (19.81 mm) fastener setting stroke.

The GB703SRV split handle installation tool operates on 90 to 100 psi (6.2 - 6.9 bar) of air pressure, with 90 p.s.i. (6.2 bar) providing maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB703SRV does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
