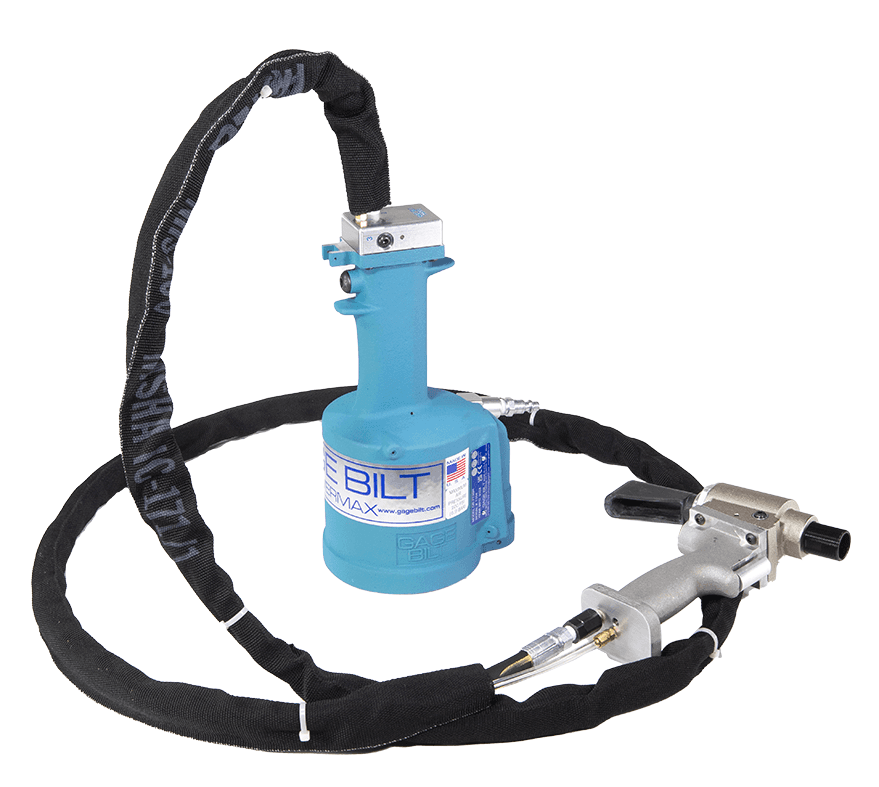

The GB713SH is a pneumatic-hydraulic split handle installation tool designed specifically for the efficient installation of blind fasteners. This tool’s unique "split" system provides the operator with a lightweight ergonomic tool. The handle and head assembly when held in hand weighs 2.50 lbs. (1.1 kg). The entire split handle installation tool weighs 7.50 lbs. (3.4 kg). It has a .760” (19.3 mm) fastener setting stroke.

The GB713SH split handle installation tool operates on 90 - 100 psi. (6.2 - 6.9 bar) Max. of air pressure, with 90 psi. (6.2 bar) providing maximum efficiency. At 90 psi. (6.2 bar) air pressure, the GB713SH does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle). The GB713SH comes with 8 feet (2.4 m) of hose. Vacuum systems are available for this tool, please consult our engineering department for specific applications.

The air inlet has a 1/4 - 18 female pipe thread for accepting the user's air hose fitting.
