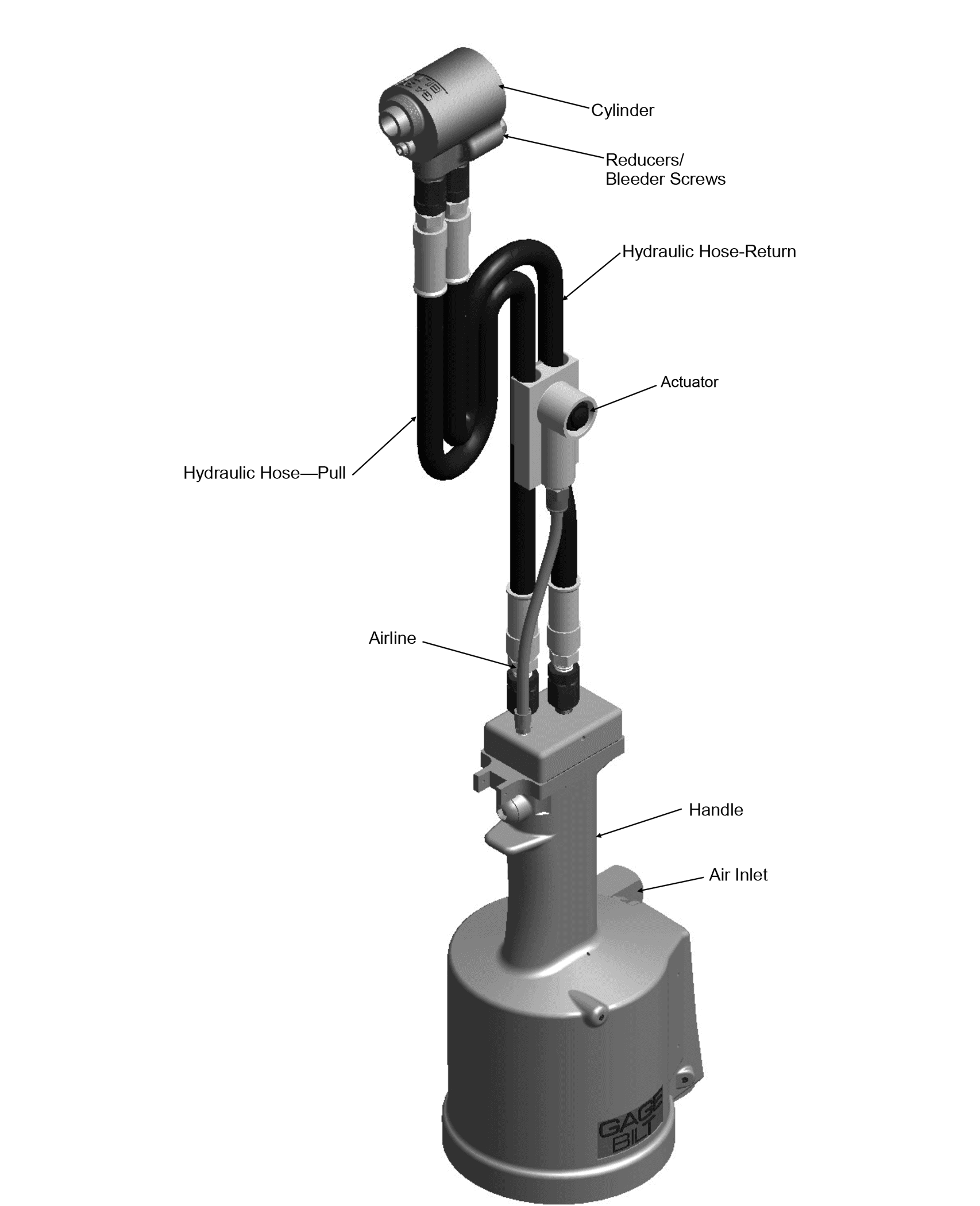

The GB745/206-500 Split Handle Pneumatic-Hydraulic Installation Tool is designed specifically for the efficient installation of blind rivets and lockbolt fasteners. This tool’s unique "split" system provides the operator with a lightweight ergonomic tool for a fraction of the cost of other cumbersome power rigs. It has a .500" (12.7mm) fastener setting stroke with a rated pull load of 5,600 lbs. (24.9 kN) at 90 psi. (6.2 bar) air pressure at the air inlet.

The GB745/206-500 comes with 8 ft. (2.44 m) of hose and a remote actuator. The GB745/206-500 cylinder when held in your hand, weighs 2.0 lbs. (.91 kg). While the entire split installation tool weighs 12 lbs. (5.44 kg).
