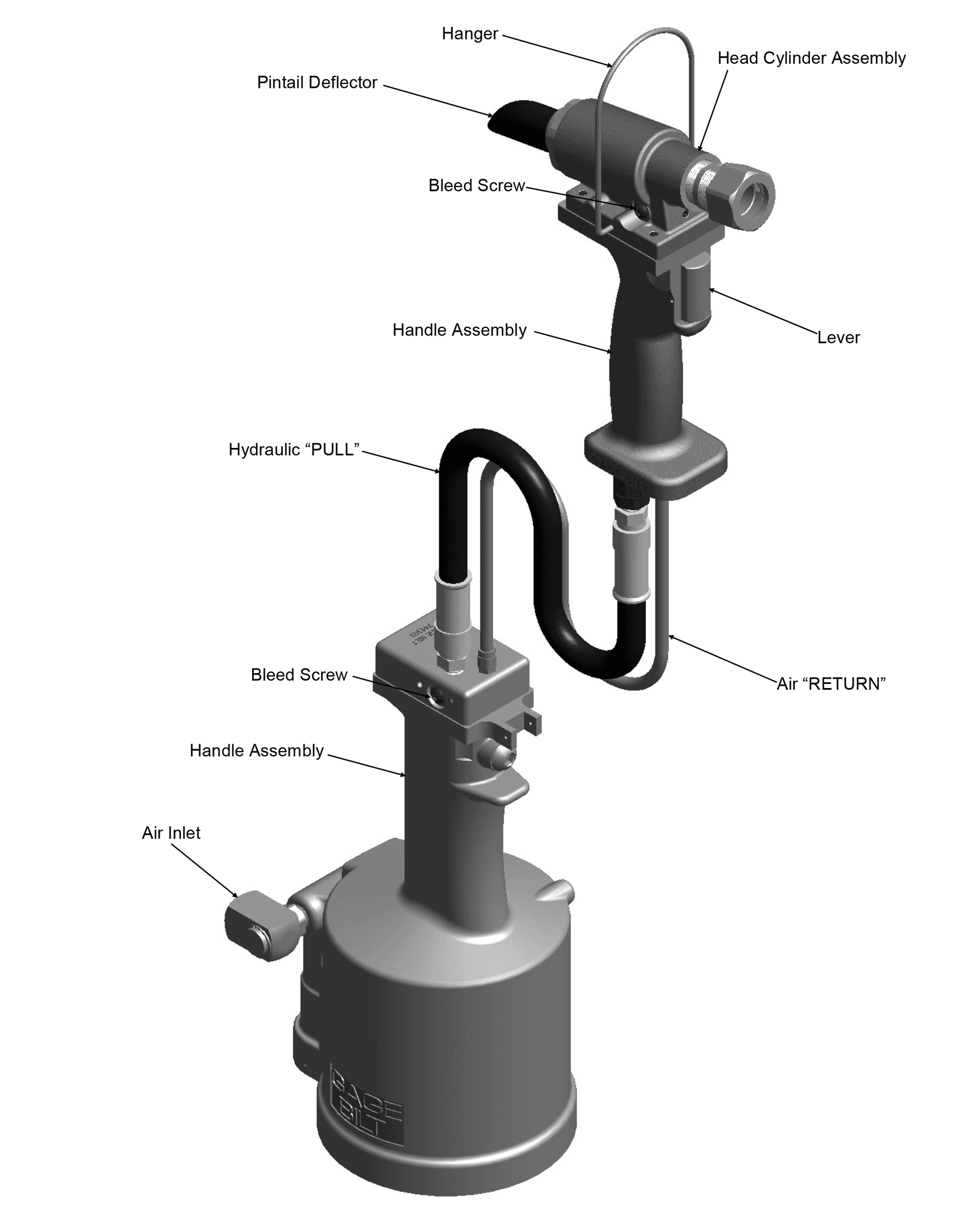

The GB751SH is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets. This tool’s unique “split” system provides the operator with a lightweight ergonomic tool. The handle and head assembly when held in hand weighs 2.50 lbs. (1.13 kg). The entire split handle installation tool weighs 7.50 lbs. (3.40 kg). It has a .780” (19.8 mm) fastener setting stroke.

The GB751SH split handle riveter operates on 90 to 100 psi. (6.2 - 6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency. At 90 psi. (6.2 bar) of air pressure, the GB751SH does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle).
