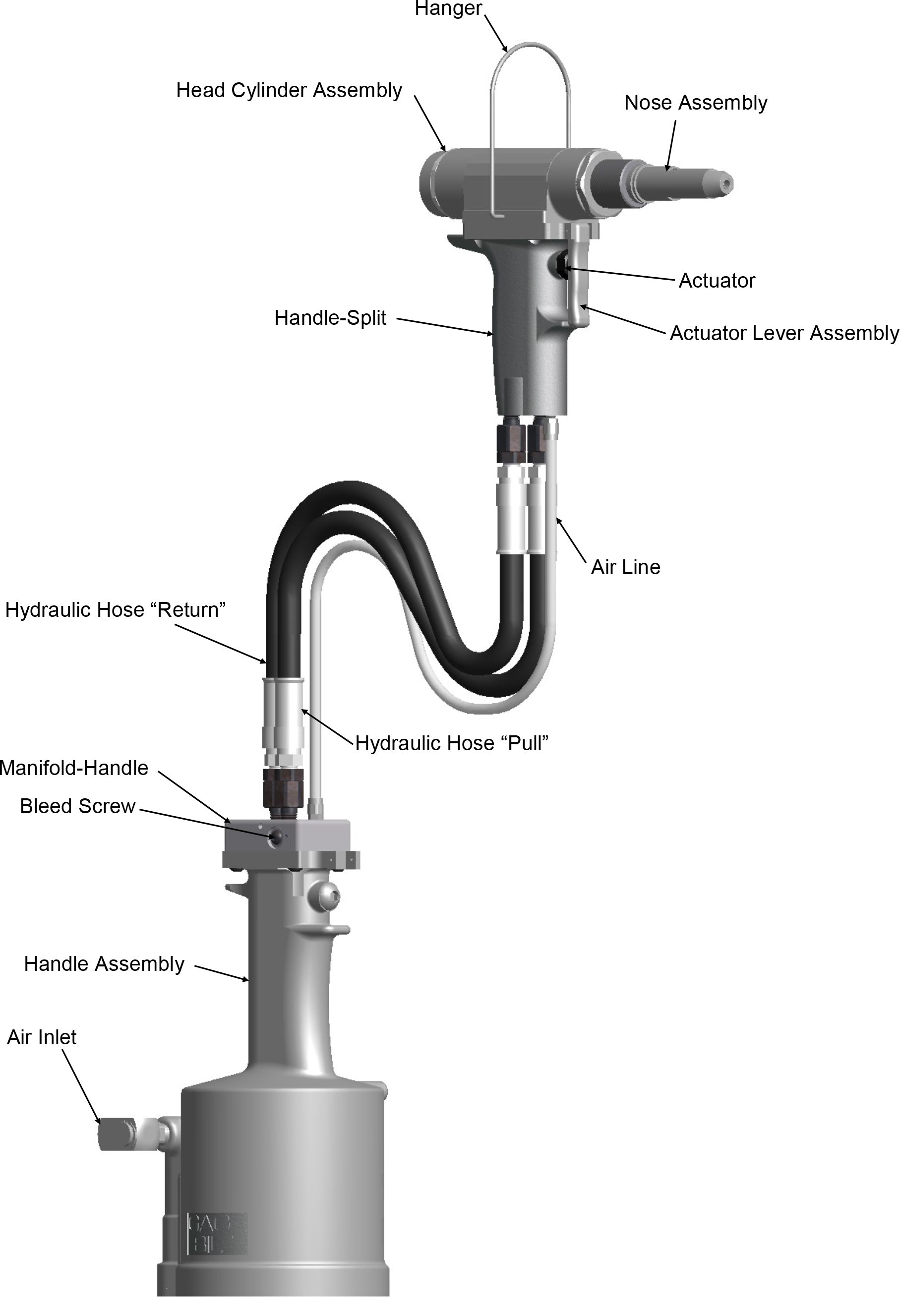

The GB784SH is a pneumatic-hydraulic hydro-shift installation tool designed specifically for the efficient installation of the 2000 series CHERRYLOCK®, NAS1398, NAS1399, NAS1738 and NAS1739 double action blind rivets. The handle and head assembly when held in hand weighs 5 lbs. (2.27 kg). The GB784SH has a .875" (22.2 mm) fastener setting stroke and a rated pull load of 2,650 lbs. (11.79 kN) with 90 psi (6.2 bar) of air pressure at the air inlet.

The GB784SH installation tool operates on 90 to 100 psi (6.2 - 6.9 bar) Max. of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency. At 90 psi (6.2 bar) of air pressure, the GB784SH does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle). The GB784SH comes with 3 feet (.91 m) of hose. Please consult our engineering department for specific applications.
