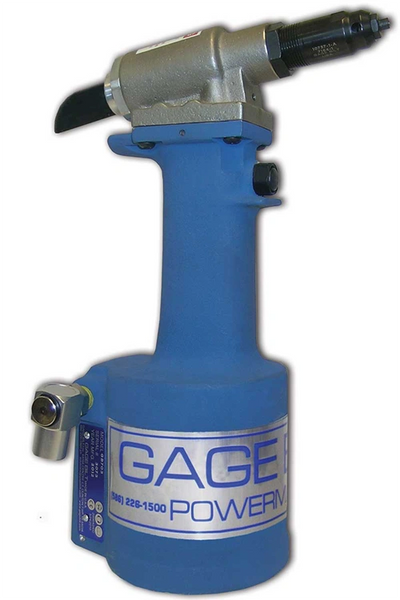

GB703 Pneudraulic Rivet Tool

$1,046.00
DESCRIPTION
  • The GB703 series riveters operate on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency. At 90 psi (6.2 bar) air pressure, the GB703 series does not exceed 85 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle) and consumes .30 SCF/cycle (8.50 L/cycle) for the GB703SH.
  • The GB703 series are pneumatic-hydraulic tools designed specifically for the efficient installation of blind rivets. They can be operated in any position. They have a rated pull load of 2,200 pounds (9.8 kN) with 90 psi (6.2 bar) of air pressure at the air inlet.
APPLICATIONS
  • Commercial Blind Rivets
  • All materials 3/32" Thru 3/16"
  • Aluminum Thru 1/4"

SPECIFICATIONS
  • One Piece Piston to Prevent Jamming
  • Accepts Cherry® H703 & H743 Nose Assemblies
  • Weight: 4.5 lbs (2 kg)
  • Hyd. Pressure Req'd: 90-100 psi (6.2-6.9 Bar)
  • Setting Stroke: .780" (19.8 mm)
  • Rated Pull Load: 2,200 lbs
  • Includes Nose Assembly
