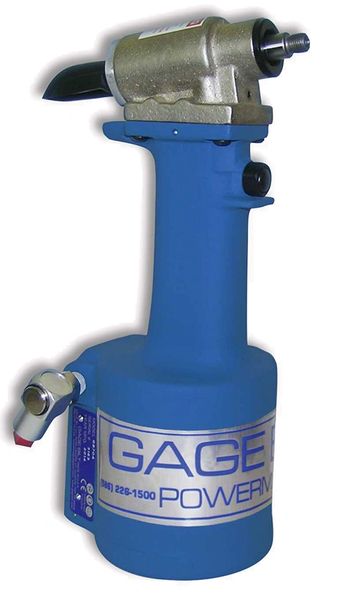

GB704 Pneudraulic Rivet Tool

  • The GB704 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets. It weighs 4.30 lbs. (1.95kg) and can be operated in any position. It has a .540" (13.72mm) rivet setting stroke and a rated pull load of 3,300 lbs. (14.68 kN) with 90 psi. (6.2 bar) air pressure at the air inlet.
  • The GB704 installation tool is designed to operate on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi (6.2 bar) air pressure providing the maximum efficiency. At 90 psi (6.2 bar) air pressure, the GB704 does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
  • 'U' Type
  • Max Type
  • Aerospace Blind Rivets
  • All materials Thru 3/16"

  • Stroke: .540"
  • Load: 3,300 lbs
