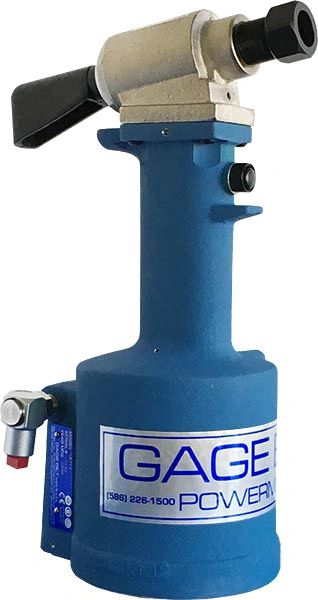

GB713 Pneudraulic Rivet Tool
$1,414.00
DESCRIPTION
- The GB713 is a pneumatic-hydraulic tool designed specifically for the efficient installation of blind rivets. It weighs 6.50 lbs. (2.9 kg)
and can be operated in any position. It has a .760" (19.3 mm) fastener setting stroke and a rated pull load of 4,500 lbs. (20.0 kN) with
90 psi (6.2 bar) air pressure at the air inlet.
- The GB713 installation tool operates on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency.
At 90 psi (6.2 bar) of air pressure, the GB713 does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle
APPLICATIONS
- Blind Rivets Thru 1/4" All Materials
- Blind Bolts Thru 1/4" All Materials
- Multi-Grip Lock Bolts Thru 1/4" All Materials
SPECIFICATIONS
- Stroke: .760"
- Load: 4,500 lbs
- Accepts 3/4" diameter GAGE BILT & Huck® noses
