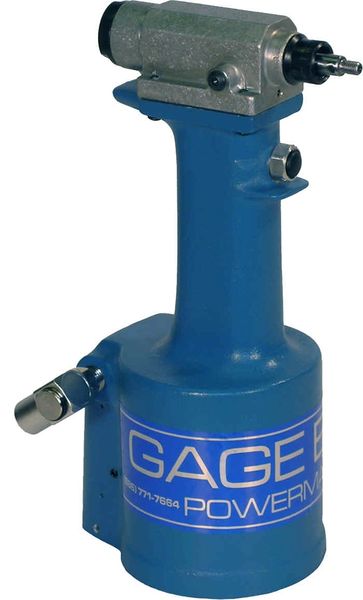

The GB715 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind fasteners. It weighs
3.80 lbs. (1.7 kg) and can be operated in any position. It has a 1.200" (30.5 mm) fastener setting stroke and a rated pull load of 1400 lbs.
(6.2 kN) with 90 psi (6.2 bar) air pressure at the air inlet.
The GB715 installation tool operates on 90 to 100 psi (6.2-6.9 bar) Max. of air pressure, with 90 psi (6.2 bar) providing the maximum
efficiency. At 90 psi (6.2 bar) of air pressure, the GB715 does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
APPLICATIONS
All materials Thru 1/8"
Aluminum Thru 3/16"
Installs Long Grip Rivets in One Pull
MS & "A" Code Blind Rivets
Aerospace Blind Rivets
SPECIFICATIONS
Stroke:1.200"
Load: 1,400 lbs
Accepts Cherry® 9015 & 9055 Series Nose Assemblies
Accepts All Olympic® Screw-On Nose Assemblies
Accepts GAGE BILT 715 and 51 Series Nose Assemblies
