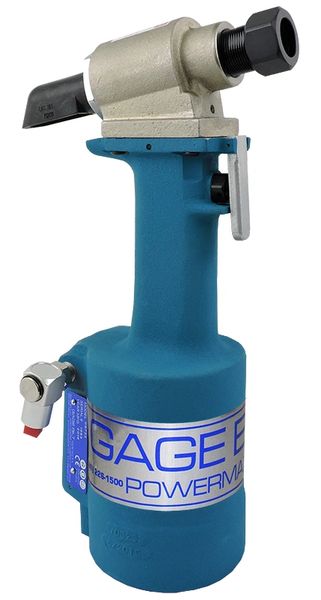

GB722 Pneudraulic Rivet Tool
$1,015.00
DESCRIPTION
- The GB722 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind fasteners. It weighs
5.50 lbs. (2.49 kg) and can be operated in any position. It has a .590" (15.0 mm) rivet setting stroke and a rated pull load of 4700 lbs
(20.91 kN) with 90 psi (6.2 bar) air pressure at the air inlet.
- The GB722 installation tool operates on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency.
At 90 psi. (6.2 bar) air pressure, the GB722 does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
APPLICATIONS
- Blind Rivets Thru 1/4" All Materials
- Blind Bolts Thru 3/16" All Materials
- Multi-Grip Lock Bolts Thru 1/4" All Materials
SPECIFICATIONS
- Stroke: .590"
- Load: 4,700 lbs
- Accepts 3/4" diameter GAGE BILT & Huck® noses
