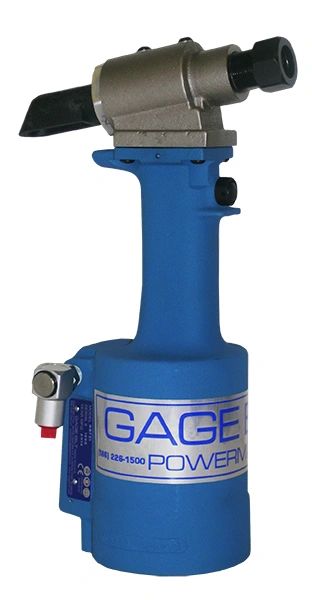

GB731 Pneudraulic Rivet Tool
$1,420.00
DESCRIPTION
- The GB731 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets and lockbolts. It
weighs 5.75 lbs. (2.61 kg) and can be operated in any position. It has a .600" (15.24 mm) rivet setting stroke and a rated pull load of
4800 lbs. (21.35 kN) with 90 psi (6.2 bar) air pressure at the air inlet.
- The GB731 installation tool operates on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency.
At 90 psi. (6.2 bar) of air pressure, the GB731 does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
APPLICATIONS
- Aerospace and Commercial Blind Rivets Thru 1/4" All Materials
-
Aerospace and Commercial Lock Bolts Thru 1/4"
SPECIFICATIONS
- Stroke: .500"
- Load: 4,800 lbs
- Accepts 3/4" diameter GAGE BILT & Huck® noses
- Hydraulic Return
