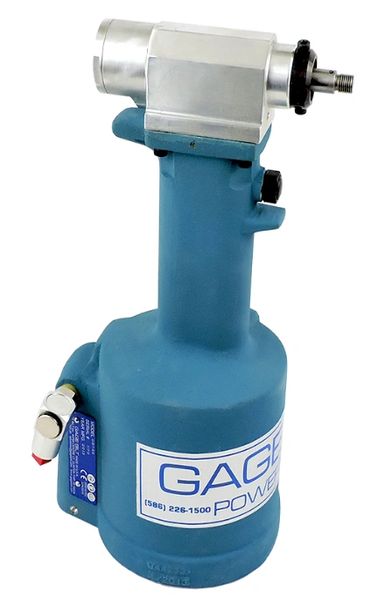

GB740 Pneudraulic Rivet Tool
$2,785.00
DESCRIPTION
- The GB740 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets. It weighs 6.50 lbs.
(2.95 kg) and can be operated in any position. It has a 1.330” (33.78 mm) fastener setting stroke and a rated pull load of 2,400 lbs. (10.7 kN)
with 90 psi (6.2 bar) of air pressure at the air inlet.
- The GB740 installation tool operates on 90 to 100 psi. (6.2-6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency.
At 90 psi. (6.2 bar), the GB740 does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle).
APPLICATIONS
- Aerospace Blind Rivets
- MS and 'A' Code Thru 1/4"
- Installs Long Grip Rivets in One Pull
SPECIFICATIONS
- Stroke: 1.33"
- Load: 2,400 lbs
