GB743 Pneudraulic Rivet Tool

$1,167.00
DESCRIPTION

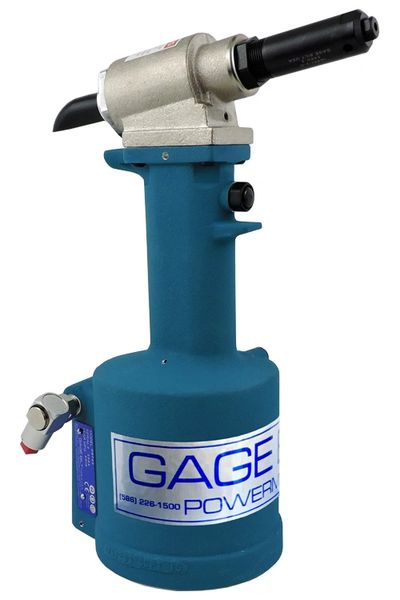

  • The GB743 is a pneumatic-hydraulic tool designed specifically for the efficient installation of blind rivets. It weighs 6.25 lbs. (2.83 kg) and can be operated in any position. It has a .900" (22.86mm) fastener setting stroke and a rated pull load of 4000 lbs. (17.8 kN) with 90 psi (6.2 bar) air pressure at the air inlet.
  • The GB743 installation tool operates on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi. (6.2 bar) providing the maximum efficiency. At 90 psi. (6.2 bar) of air pressure, the GB743 does not exceed 81.5 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle).
APPLICATIONS
  • Commercial Blind Rivets
  • All Materials Thru 1/4"
  • Heavy Duty Monobolt® Tool

SPECIFICATIONS
  • Stroke: .900"
  • Load: 4,000 lbs
  • Includes Nose Assembly
  • Accepts Cherry® H703 and H743 nose assemblies
