GB745 Pneudraulic Rivet Tool

$1,887.00
DESCRIPTION

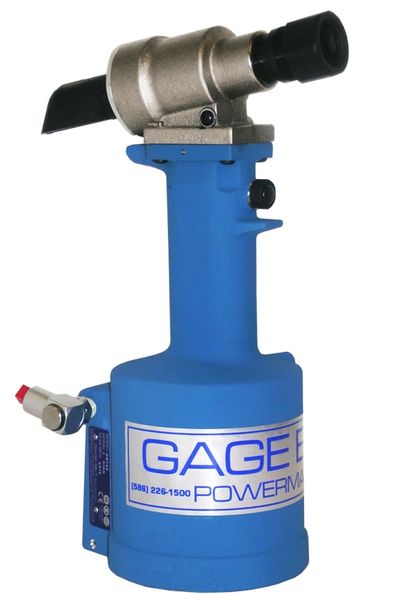

  • The GB745 is a pneumatic-hydraulic tool designed specifically for the efficient installation of blind rivets, lockbolts and MAGNA-GRIP® fasteners. It weighs just over 7.2 lbs. (3.26 kg) and can be operated in any position. It has a .620” (15.75 mm) fastener setting stroke and a rated pull load of 6,300 lbs (28.02 kN) with 90 psi (6.2 bar) air pressure at the air inlet.
  • The GB745 installation tool operates on 90 to 100 psi (6.2-6.9 bar) of air pressure, with 90 psi. (6.2bar) providing maximum efficiency. At 90 psi. (6.2bar) of air pressure, the GB745 does not exceed 80 dB(A) and consumes .30 SCF/cycle (8.50 L/cycle).
APPLICATIONS
  • Blind Rivet & Blind Bolt thru 5/16"
  • BOM® and MAGNA-GRIP® thru 1/4"
  • C6L® thru 3/8"
  • Commercial & Aerospace Lockbolt tool

SPECIFICATIONS
  • Stroke: .620"
  • Load: 6,300 lbs
  • Accepts 1 1/16" diameter GAGE BILT & Huck® noses
