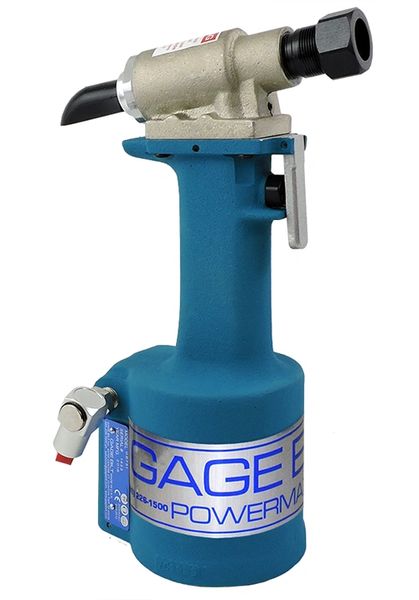

GB751 Pneudraulic Rivet Tool

$1,066.00
DESCRIPTION
  • The GB751 is a pneumatic-hydraulic installation tool designed specifically for the efficient installation of blind rivets. It weighs 4.5 lbs. (2 kg) and can be operated in any position. It has a .780" (19.81 mm) fastener setting stroke and a rated pull load of 2200 lbs. (9.8 kN) with 90 psi. (6.2 bar) air pressure at the air inlet.
  • The GB751 installation tool operates on 90 to 100 psi. (6.2-6.9 bar) of air pressure, with 90 psi (6.2 bar) providing the maximum efficiency. At 90 psi. (6.2 bar) of air pressure, the GB751 does not exceed 81.5 dB(A) and consumes .16 SCF/cycle (4.53 L/cycle).
APPLICATIONS
  • Aluminum thru 1/4"
  • All materials 3/32" - 3/16"
  • Commercial & Aerospace Blind Rivets

SPECIFICATIONS
  • Stroke: .780"
  • Load: 2,200 lbs
  • Accepts 3/4" dia. GAGE BILT & Huck® noses
