Hex Nut Temporary Fasteners
$3.15
APPLICATION
- Used for clamping two or more structural pieces at desired clamp force utilizing industry standard "cliché" type pneumatic tooling.
FEATURES
- Made in USA
- High clamping loads
- Spin-free design design allows nut to fully back off stud while on stud body
Size / Grip Range / Body Installed / Overall Length / Drill Size / Color Code
- HNX-3/32 / 0-1/2" / 2-11/16" / 2-7/8" / #40 Drill / Zinc
- HNX-1/8 / 0-1/2" / 2-11/16" / 2-7/8" / #30 Drill / Copper
- HNX-5/32 / 0-1/2" / 2-11/16" / 2-7/8" / #20 Drill / Black
- HNX-3/16 / 0-1/2" / 2-11/16" / 2-7/8" / #10 Drill / Brass
Size / Grip Range / Body Installed / Overall Length / Drill Size / Color Code
- HNXL-3/32 / 0-1" / 3-11/16" / 3-7/8" / #40 Drill / Zinc
- HNXL-1/8 / 0-1" / 3-11/16" / 3-7/8" / #30 Drill / Copper
- HNXL-5/32 / 0-1" / 3-11/16" / 3-7/8" / #20 Drill / Black
- HNXL-3/16 / 0-1" / 3-11/16" / 3-7/8" / #10 Drill / Brass
AVAILABILITY
- For the latest availability, please give us a call!

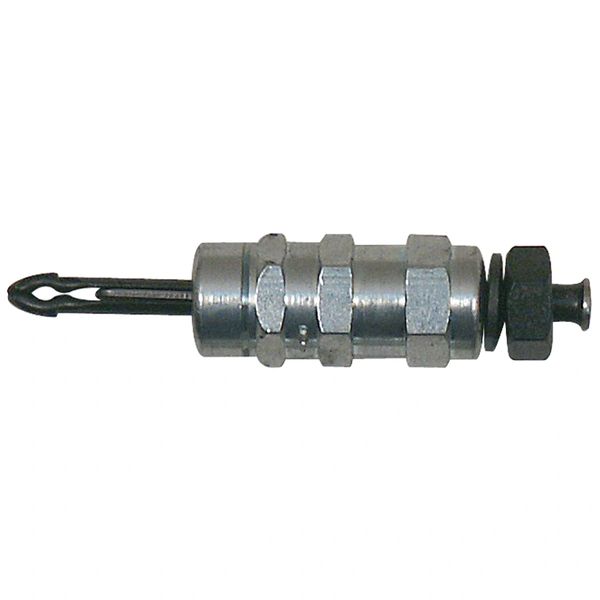

NOTE: Picture is representative only
